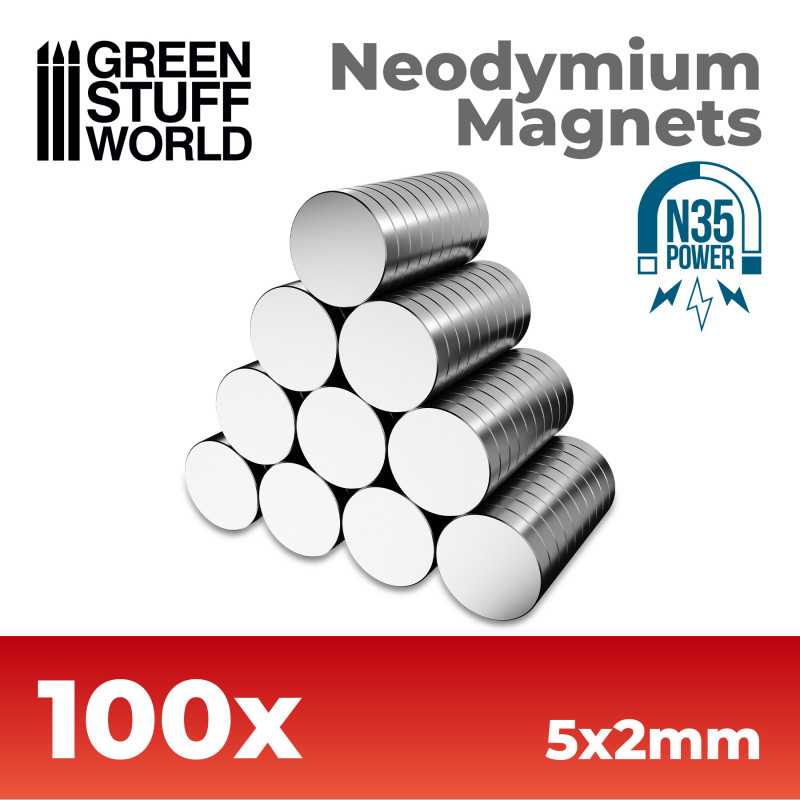

Neodymium Magnets 5x2mm - 100 units (N35)
  • Neodymium Magnets 5x2mm - 100 units (N35)

Neodymium Magnets 5x2mm - 100 units (N35)

8436554365623ES
Rating

    Neodymium Magnets 5x2mm - 100 units (N35)

    $17.25
    $14.66 Save 15%
    Quantity

    Close
    Description

    Neodymium Magnets

    Diameter: 5mm (3/16')
    Thickness: 2mm (1/12')
    Quantity: 100

    Magnetisation: N35
    Pull Forces: 450gr (magnet to magnet) **
    Material: NdFeB
    Coating: Nickel Plated (Ni-Cu-Ni)

    Neodymium Magnet is the strongest type of permanent magnet commercially available. They have replaced other types of magnets in the many applications in modern products that require strong permanent magnets.

    The references N35 and N52 are a measurement of the quality of the magnet material. The higher the grade (the number following the 'N'), the stronger the magnet. These will explain two things:
    - How much "magnetic energy" per volume is contained in this magnet material
    - Up to what temperature the magnet can be used

    Magnets that begin with an "N" should be used up to 80°C (176°F).
    The highest grade of neodymium magnet currently available is N52.

    If you take any two magnets of different sizes and magnetization from our range, the difference in their strength is more due to the differences in their volume than the differences in their magnetization. That's why the larger magnet is mostly the stronger magnet, even when its magnetization classification is somewhat smaller.

    ** Pull Forces: Expected pull forces based on extensive product testing. The Surface Field data is only valid for points along the center axis of the magnet and assumes a single magnet in free space.

    If you are planning to use them with wargames and miniatures we will recommend you as follows:

    - Neodymium Magnet - 3x0.5mm, for exchanging weapons, heads, arms, etc ...
    - Neodymium Magnet - 3x1mm, for exchanging weapons, heads, arms, etc ...
    - Neodymium Magnet - 3x2mm, for plastic miniatures bases.
    - Neodymium Magnet - 5x2mm, for metal miniatures bases.




    MAGNET ATTRACTION COMBINATION

    Movement Tray

    Miniature

    PLASTIC Minisattraction

     METAL Minisattraction

    Neodymium

    Neodymium

    Super High

    Super High

    Rubber Steel Sheet

    Neodymium

    High

    High

    Magnetic Sheet

    Neodymium

    Medium

    Medium

    Rubber Steel Sheet

    Magnetic Sheet

    Medium

    Low

    Magnetic Sheet

    Magnetic Sheet

    Low

    Insufficient

    * Using wrong Neodymium may reduce this strenght to the next lower level.
